📷 ESP32 Motion Camera

Posted by: Chr0nicHacker
Project Repo: esp32-motion-cam

This isn’t just a camera—it’s a DIY surveillance system forged in code, soldered by hand, and controlled by you.

🛠 What It Does

The ESP32 Motion Camera uses a PIR sensor and ESP32-CAM to detect motion, snap photos, and serve them via web UI—locally and securely.

💡 Why I Built It

I wanted a cloud-free cam with full control and timestamped logs. Retro UI included. Built for privacy geeks, makers, and rebels.

🔗 GitHub Repo

Code and instructions live at:
👉 github.com/Chr0nicHacker/esp32-motion-cam

📦 Parts List

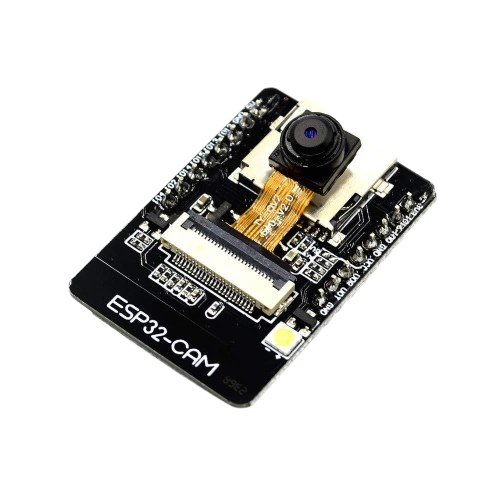

• ESP32-CAM (OV2640)
• PIR Motion Sensor (e.g., HC-SR501)
• MicroSD Card
• Optional: WS2812B or LED on GPIO 4

🧠 Key Features

• Motion detection
• Timestamped snapshots
• Web interface with image viewer
• Delete images on click
• Fully offline operation

🌐 Example Interface

🪛 Wiring Diagram

• PIR VCC → 3.3V
• PIR GND → GND
• PIR OUT → GPIO 13
• LED → GPIO 4 (with 330Ω resistor)

💡 Use 5V input to ensure stable power to ESP32-CAM and SD card.

📊 ESP32-CAM Pinout Reference

📖 Full Instructions + Code

Open-source and documented step-by-step:
👉 esp32-motion-cam on GitHub

Built not bought. Watch your six. — CH
